CIRC4Life System Architecture
10 mile view
Project partners involved with Information and Communications Technology development
- (NTU) Nottingham Trent University
- (ENV) Bjorling Sten Erik-Enviro Data
- (EECC) European Epc Competence Center GmbH
- (ICCS) Institute of Communication and Computer Systems
| Group | Module | Developed by |
|---|---|---|
| 1. ICT Platform | 1.1 Access Control Manager | ICCS |
| 1. ICT Platform | 1.1.1 ICT Web Services | ICCS |
| 1. ICT Platform | 1.1.2 Data Gateway | ICCS |
| 2. Data Providers | 2.1 Data Entry Tool for Stakeholders | ENV |
| 2. Data Providers | 2.2 Intermediate Products Data Export Web Service | ENV |
| 3. Services | 3.1 Recycle and Reuse Module | NTU |
| 3. Services | 3.2 Traceability Module | EECC |
| 3. Services | 3.3 LCIA ReCiPe Score Module (Cancelled) | NTU |
| 4. End user applications | 4.1 Eco Account and Shopping Module | NTU |
| 4. End user applications | 4.2 Retailer Tool for Eco Accounting | NTU |
| 4. End user applications | 4.3 Impact Assessment Tool | ICCS |
| 4. End user applications | 4.4 Brokerage System | ICCS |
Data Models
See here.

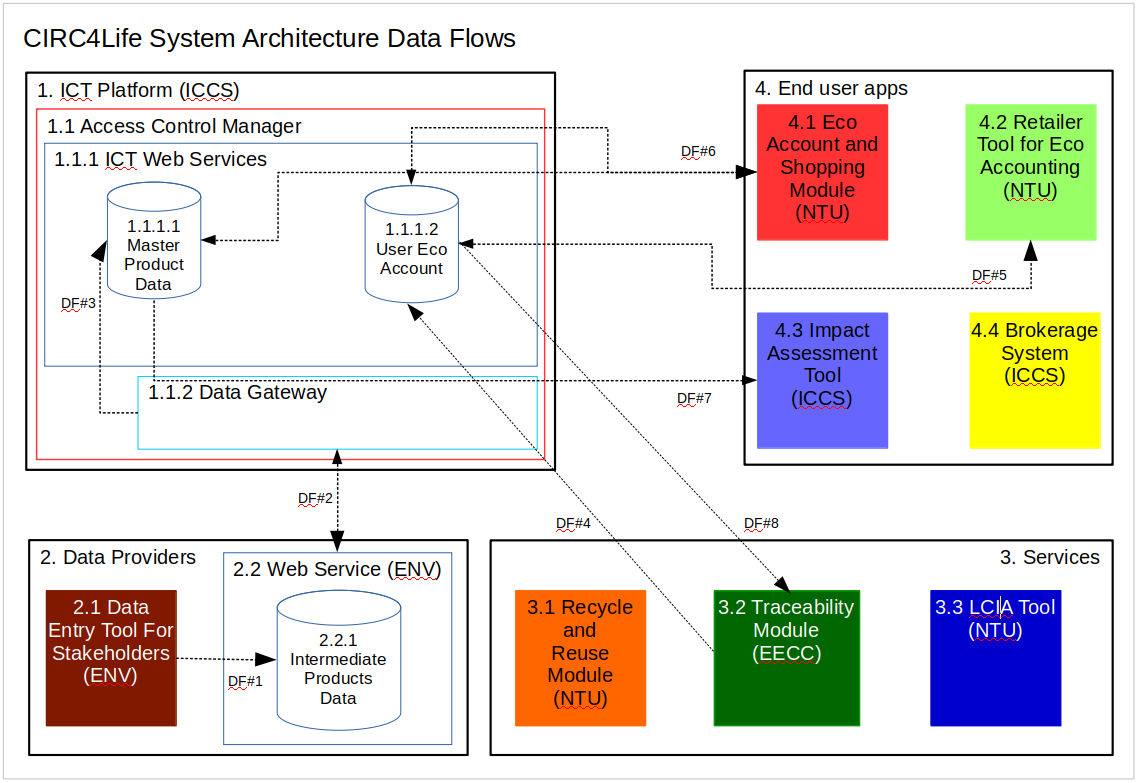

Data Flows
The Data Flows below are a work in progress. All partners developing these modules should collaborate on finalizing this table as soon as possible.
| Data Flow | Source | Destination | Data Format | Communication Protocol | Comment | System/User Requirements |
|---|---|---|---|---|---|---|
| DF#1 | 2.1 Data Entry Tool for Stakeholders | 2.2.1 Intermediate Products Data | Internal Query Language | Local Database connector | Data entry UI application saves records to local relational database | |
| DF#2 | 2.2 Intermediate Products Data Export Web Service | 1.1.2 Data Gateway | JSON | HTTP Web Service | Data Gateway service retrieves data entry records | |
| DF#3 | 1.1.2 Data Gateway | 1.1.1 ICT Web Services | JSON | HTTP REST Service | Data Gateway posts validated data entry records to REST endpoint that updates Product Master Database. | |
| DF#4 | 3.2 Traceability Module | 1.1.1 ICT Web Services | JSON | HTTP REST Service | Post Consumer and Product ID with recycler evaluation result | SYSTEM_01,05,18,30 - USER_G_10,13,15 |
| DF#5 | 4.2 Retailer Tool for Eco Accounting | 1.1.1 ICT Web Services | JSON | HTTP REST Service | Retailer tool access to Product Master Database and EcoAccount anonymously for purchase history update | SYSTEM_05,08 - USER_G_04,12 - USER_U_02 |
| DF#6 | 4.1 Eco Account and Shopping Module | 1.1.1 ICT Web Services | JSON | HTTP REST Service | End-user applications access Product Master Data information and EcoAccount | SYSTEM_03,04,05,06,08,09,10,11,12,13,14,16,17,19,20,21,25,26,28,29 - USER_G_02,03,04,08,09,11,12,15 - USER_U_01,03,04,05,06,07 |
| DF#7 | 1.1.1 ICT Web Services | 4.3 Impact Assessment Tool | JSON | HTTP REST Service | Impact Assessment Tool retrieves product information, material and recycle/re-use information | SYSTEM_02,27 - USER_G_12,15 |
| DF#8 | 1.1.1 ICT Web Services | 3.2 Traceability Module | JSON | HTTP REST Service | Get purchase history, Eco-credit from evaluated recycled product, Eco-credit estimation for user incentive | USER_U_03,04 - USER_G_03 - USER_R_02,04 |
Modules
1. ICT Platform
The ICCS CIRC4Life ICT Platform is the main host system of the Access Control Manager, the REST Web Services and Persistent Databases. End-users and project client applications retrieve and update data by using the single authorization point provided by the Access Control Manager.
1.1 Access Control Manager
The Access Control Manager is responsible for all Authentication and Authorization of the ICT Platform. It handles the consumer’s Eco-accounts and the accessibility of 3rd party application to the provided REST Web Services. The implementation is based on the Open Source Identity and Access Management platform Keycloak, a project supported by the industry’s open source leader RedHat. keycloak uses standard protocols and provides support for OpenID Connect, OAuth 2.0, and SAML. It integrates with a large list of different technology stacks and programming languages via Client Adapter libraries. It can federate user repositories from external LDAP or Active Directory servers and also provides identity brokering for external social networks including:
1.1.1 ICT Web Services (REST)
All data access to end-users and 3rd party client application is provided by a layer of REST Web Service endpoints. The Application Programming Interface (API) provided by the REST endpoints targets to cover all System and User Requirements described in Deliverable 4.1. See REST APIs and Services Usage.
1.1.1.1 Master Product Data
See Data Models.
1.1.1.2 User Eco Account
See Data Models.
1.1.2 Data Gateway
See Data Models.
2. Data Providers
ENV developed applications for data entry input, mainly for products and their life cycle information.
2.1 Data Entry Tool for Stakeholders
Available as a Web Application here: ENV Data Entry Tool.
- Username: DataEntryTool
- Password: iccs.isense.circ4life.envirodata.2019
2.2 Intermediate Products Data Export Web Service
Available as a Web Application here: ENV Data Export Service.
No authorization is in place, the service is public.
3. Services
External Web Services, not part of the core ICT Platform.
3.2 Traceability Module
Available as a Web Application here: CIRC4Life Traceability Module.
4. End user applications
Consumer applications for mobile devices.
4.1 Eco Account and Shopping Module
Google Android mobile application. It can be installed on Android devices via the Google Play Store.
